Input-Dependent Relay Oscillator:

This approach to oscillation is ridiculously modular, and frankly, out of hand.

The IDRO builds waveforms from up to 48 inputs, cycling through them at a rate determined by pitch cv (1v/oct) to generate a tone. Connect those inputs to modulation, other oscillators, dc voltages, audio, or whatever, and they will be spun & merged into a single, dynamic new waveform. As your inputs change, so to does the result. A free IDRO Supplier module also provides dc sources, macro waveform sculpting, and crude sampling.

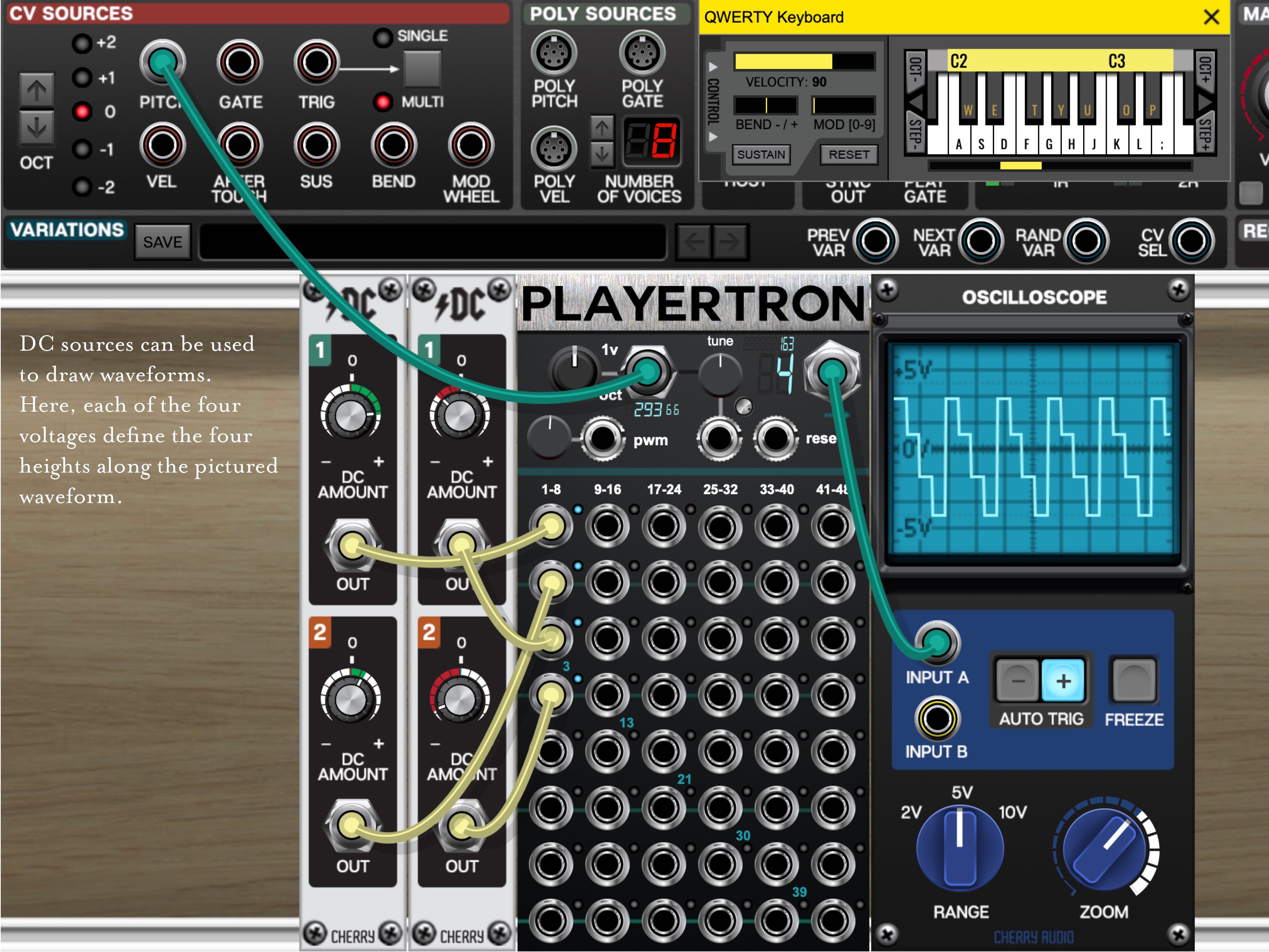

You don’t have to use all of the inputs, as the device calculates cycle times based on the connected jack count (if you connect jacks 1-4, then you can have a 4 part waveform). but you can. And you can then get into pulse-width and frequency modulation too.

Sure, it’s outlandish, but that’s the point.

IDRO Supplier:

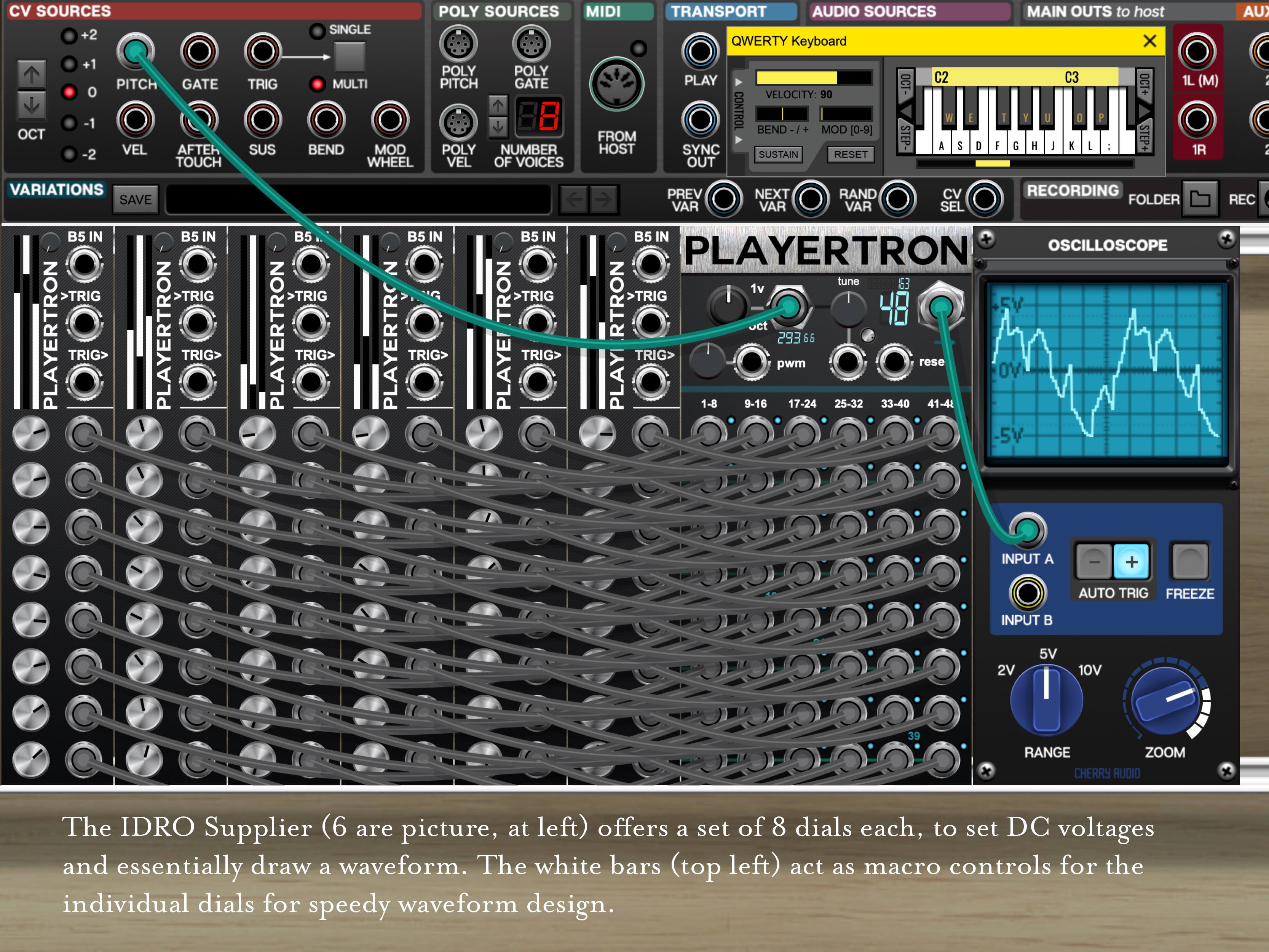

A companion device for the Input-Dependent Relay Oscillator, this unit offers 8 DC voltages, assigned by the silver dials on the left.

At the top-left, three blue macro bars can instead be used to shape the voltages, as they are interpolated to match. The silver knobs are automated into place.

The DC voltages can be assigned by sampling too, albeit with crude results. The top B5 input expects the note “B” just below C5, and when a trigger is recieved at the jack just below, sampled voltages are assigned to successive knobs. One unit will capture 1/6th of the waveform, and then output a trigger (third from the top) which can be sent to another IDRO Supplier so that it can capture the next 6th of the waveform, and so on until a full cycle is sampled.

If the lower output jacks are connected to successive inputs of the Input-Dependent Relay Oscillator, you’ll find it playing a sampled waveform.
